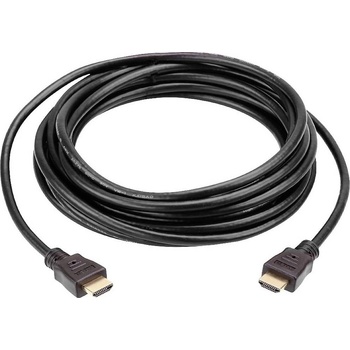

Aten 2L-7D20H

Aten 2L-7D20H 20 m vysokorychlostní HDMI kabel s Ethernet (2L-7D20H) ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 20 meters with resolutions up to 4K (4096 × 2160 @30Hz).

Features:

Superior video quality: • up to 4K (4096 × 2160 @30Hz) HDMI Ethernet Channel functionality: additional dedicated data channel supports networking* HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant Gold-plated connectors for reliable transmissions

Available in lengths from 1 to 20 m RoHS compliant Bend Radius 90°** Note:

Feature only available if linked devices are HDMI Ethernet Channel enabled ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute

Specification

Video Resolution Up to 4096X2160 @30Hz

Physical Properties

Cable Length 20m

Cable Color Black

Cable Outer Dimension 10.0±0.2mm

Conductor Gauge 26AWG Conductor Material Tinned Copper

Connector Plating Gold

Connector Type HDMI (19pin) Male to Male

Cable Shield Type Aluminum Foil

Cable Jacket Type PVC

Environmental

Operating Temperature 80 st.

Rating UL VW-1 (Flame rate), CSA

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
